What Are the Best China Flex PCBs for Global Buyers?

Choosing the best flex pcbs for global buyers requires more than comparing prices and layer counts. A reliable board must survive bending, heat, vibration, assembly, and repeated electrical testing. It should also match the product’s real operating environment, not only the supplier’s catalog description.

Joe Fjelstad, a recognized flexible-circuit expert and author of Flexible Circuit Technology, describes the design challenge clearly: “A flexible circuit is not simply a rigid board made thinner.” That principle matters when evaluating polyimide materials, copper thickness, bend radius, adhesive systems, stiffeners, and surface finishes. Experienced buyers should request material specifications, controlled impedance data, inspection records, and process certifications. They should also ask how suppliers validate dynamic bending performance.

Price is only one part of the decision. A low quotation can look persuasive. It can also hide weak documentation, unstable lead times, or limited engineering support. Global buyers need suppliers that communicate clearly across design reviews, prototypes, production, and after-sales analysis. Certifications such as ISO 9001, IPC-based workmanship controls, and traceable quality records can strengthen confidence, but they do not replace independent technical evaluation.

This guide compares leading flex pcbs by reliability, manufacturing capability, application fit, customization, and total ownership cost. Some conclusions may change by project. That is the difficult part. A medical wearable, automotive sensor, and compact consumer device rarely need the same flexible-circuit strategy. The best choice is therefore not always the cheapest, thinnest, or fastest option. It is the one that remains dependable when real-world conditions become less forgiving.

Table of Contents [Hide]

1 What Are China Flex PCBs and Why Do Global Buyers Choose Them?

2 Which Flex PCB Types and Materials Suit Different Applications?

3 How Should Buyers Evaluate China Flex PCB Quality and Compliance?

4 What Manufacturing and Customization Options Do Chinese Suppliers Offer?

5 How Can Global Buyers Compare Costs, Lead Times, and Supplier Support?

What Are China Flex PCBs and Why Do Global Buyers Choose Them?

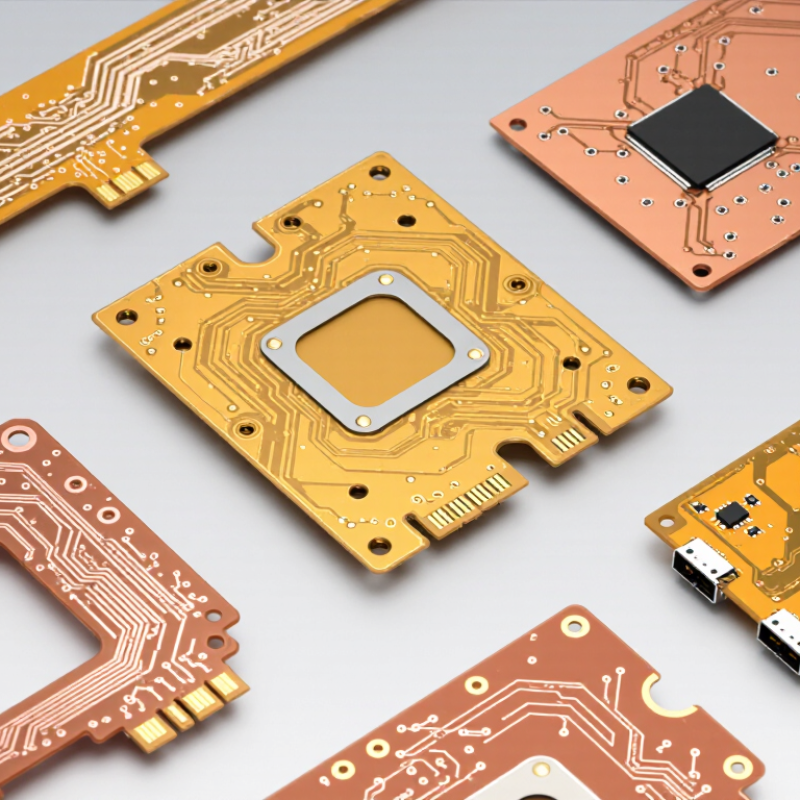

China flex PCBs are flexible printed circuit boards made with thin copper layers, polyimide film, and protective coverlay. Unlike rigid boards, they bend, fold, and fit inside compact products. They support cameras, medical sensors, wearable devices, displays, and battery connections. Global buyers often choose China suppliers because of strong electronics supply chains, broad material access, and competitive production costs. Engineering teams can also receive prototypes before committing to larger orders. That reduces costly design changes.

In practical design reviews, bend performance often causes trouble. A flex circuit may pass electrical tests but fail after repeated folding. Buyers should check copper thickness, bend radius, layer alignment, impedance control, and thermal performance. A common starting point is a bend radius near six to ten times the finished thickness, but the design and motion type matter. Ask for cross-section drawings, inspection records, and reliability test results. IPC-based quality procedures can improve consistency, though certificates alone do not prove every shipment is reliable. A low quote may hide weak process control. That deserves a closer look.

Tips: Share the real assembly conditions, not only Gerber files. Explain temperature changes, folding cycles, adhesive requirements, and connector stresses. Request a small prototype batch and inspect plated holes, exposed pads, surface scratches, and dimensional accuracy. Keep approved samples for comparison. Even careful teams miss details, so revise the design after testing instead of trusting assumptions.

Which Flex PCB Types and Materials Suit Different Applications?

Global buyers often compare flex PCBs by price, but application demands should lead the decision. Single-sided flex circuits suit simple LED panels, sensors, and short bend paths. Double-sided designs support denser routing through compact hinges and moving assemblies. Multilayer flex PCBs fit cameras, medical instruments, and aerospace controls where space is limited. Rigid-flex boards reduce connectors and assembly steps. This can improve reliability, although tooling costs are usually higher. Do not choose layer counts by habit.

Polyimide is a practical choice for heat resistance, repeated bending, and stable dimensions. Polyester costs less and suits basic, low-temperature consumer controls. Adhesive-based constructions are economical, while adhesive-less structures can improve thinness and thermal performance. Copper thickness matters too. Rolled-annealed copper handles dynamic bending better than standard electrodeposited copper. For static folds, electrodeposited copper may be adequate. Coverlay protects traces, while stiffeners support connectors and soldered components. Fit matters.

A reliable specification should state bend radius, flex cycles, operating temperature, impedance, copper weight, and surface finish. Request cross-section samples and test data, not only polished photographs. In practical reviews, engineers have found clean-looking samples failing after repeated 180-degree bends. Testing exposes assumptions. Prototype testing should copy the real hinge speed, pressure, and assembly route. Some buyers overlook moisture exposure and connector strain. A small fixture test can reveal more than a long email. Regional compliance and traceability should be verified before volume orders.

What Are the Best China Flex PCBs for Global Buyers?

Flex PCB types and materials matched to common application requirements

The suitability score ranges from 1 to 5 and reflects typical engineering considerations such as bend endurance, thermal stability, layer density, dimensional stability, and cost. Polyimide is generally preferred for high-temperature and dynamic-flex applications, while PET is more suitable for cost-sensitive, low-temperature electronics. Multilayer and rigid-flex constructions are better suited to dense interconnects and compact assemblies.

How Should Buyers Evaluate China Flex PCB Quality and Compliance?

Global buyers should assess a China flex PCB through evidence, not attractive pricing.

Ask for the material datasheet, layer stackup, copper thickness, and finished dimensions. Then compare them with the drawing and application requirements. Small details matter. For a wearable circuit, check the minimum bend radius, dynamic bend cycles, and stiffener placement. Inspect sample boards under magnification. Look for cracked solder mask, uneven plating, exposed copper, or lifted pads. These defects can appear after repeated folding, not during a quick incoming check.

Quality records should connect each batch to materials, operators, inspection results, and shipment dates.

Request cross-section reports, solderability data, peel-strength results, and electrical test records. Independent laboratory reports can strengthen confidence, especially for safety-critical products. Confirm whether the supplier follows suitable IPC workmanship standards and can meet RoHS or REACH requirements when applicable. Compliance claims should include current documents, test methods, and product scope. A certificate alone is not proof.

Experienced buyers should also evaluate process control.

Review drill accuracy, laser-cut edges, impedance control, and adhesive flow near fine-pitch areas. Ask how engineering changes are approved and communicated. During one project, a design passed basic electrical testing but failed after repeated flexing; the bend radius was too aggressive. That mistake was avoidable. Pilot production, thermal cycling, humidity testing, and assembly trials reveal more than a polished sample. I would also audit packaging, moisture protection, and corrective-action records. Some suppliers may resist detailed questions, but unclear answers deserve careful reconsideration.

What Manufacturing and Customization Options Do Chinese Suppliers Offer?

Chinese flex PCB suppliers provide several manufacturing and customization options for global buyers. Common builds include single-sided, double-sided, multilayer, and rigid-flex circuits. Buyers can specify polyimide thickness, copper weight, coverlay color, stiffeners, and surface finish. For compact products, suppliers may add fine traces, microvias, laser drilling, and controlled impedance. These choices affect bend radius, heat performance, assembly yield, and product life. Details matter.

Many factories support prototypes, small batches, and high-volume production under one engineering process. They can also provide tooling, SMT assembly, connector installation, and protective coating. A practical supplier should review Gerber files, drill data, stack-up drawings, and tolerance requirements before production. Design-for-manufacturing feedback can prevent cracked traces near sharp corners. Samples reveal more.

Reliable quality control usually includes automated optical inspection, electrical testing, solderability checks, and microsection analysis. Buyers should request material certificates, process records, and clear lot traceability. Testing may include repeated bending, thermal cycling, and insulation resistance checks. Compliance documentation for relevant market requirements should be available, not promised vaguely. A low quotation can hide tooling limits or weaker materials. No factory is perfect. Supplier communication also deserves testing, because delayed answers often expose deeper production risks. An on-site audit or independent inspection may be worthwhile for critical applications.

What Are the Best China Flex PCBs for Global Buyers? — Manufacturing and Customization Options Offered by Chinese Suppliers
Manufacturing or Customization Dimension	Common Industry Options	Typical Technical Data	Suitable Applications	Key Points for Global Buyers
Flex PCB Construction	Single-sided Double-sided Multilayer Rigid-flex	Single-sided and double-sided circuits are widely used for cost-sensitive designs. Multilayer flex and rigid-flex boards are selected when higher routing density or mechanical integration is required.	Wearable devices, sensors, displays, cameras, medical instruments, automotive electronics and compact consumer products.	Confirm the required layer stack-up, bend zones, stiffener locations and whether plated through-holes, blind vias or microvias are needed.
Base Material	Polyimide Adhesive-based copper laminate Adhesiveless copper laminate	Polyimide is the most common flexible substrate because it provides good heat resistance and mechanical flexibility. Adhesiveless constructions can reduce overall thickness and improve dimensional stability.	Dynamic bending assemblies, high-density interconnects, thermal-sensitive products and miniaturized electronics.	Specify material thickness, dielectric performance, thermal requirements and compliance documentation rather than relying only on a generic “flex PCB” description.
Number of Copper Layers	1 layer 2 layers 3–6 layers Higher layer counts by quotation	One- and two-layer flex circuits are generally easier to bend and more economical. Additional layers support controlled routing, shielding and higher circuit density but increase thickness and stiffness.	Simple LED and sensor circuits, high-speed modules, camera assemblies, battery connections and complex rigid-flex interconnects.	Ask for the finished thickness and bend-radius impact after coverlay, adhesive, stiffeners and surface finish are included.
Finished Board Thickness	Ultra-thin Standard flex Rigid-flex transition	Typical flexible sections are approximately 0.10–0.30 mm thick. Thicker designs are possible when additional copper layers, stiffeners or mechanical reinforcement are added.	Space-constrained consumer products, foldable assemblies, medical probes and compact automotive modules.	Define thickness separately for flexible zones, connector zones and stiffened component areas; these sections may have different values.
Copper Thickness	Light copper Standard copper Heavy copper by request	Common flex-circuit copper thicknesses include approximately 12–35 µm. Thicker copper may improve current capacity but can reduce flexibility and increase etching difficulty.	Low-current signal circuits, battery interconnects, LED assemblies and power distribution sections.	Balance current capacity, temperature rise, bend performance and minimum trace/space requirements before selecting copper weight.
Coverlay and Surface Protection	Polyimide coverlay Flexible solder mask Selective coverlay openings	Coverlay protects copper traces and leaves defined openings for soldering or contact areas. Localized openings can preserve flexibility while protecting the rest of the circuit.	Dynamic flexing, exposed-contact designs, compact connectors and assemblies requiring insulation protection.	Provide exact coverlay opening drawings and identify areas that must remain bendable or free from adhesive and stiffener material.
Surface Finish	ENIG Immersion tin OSP Hard gold contacts	ENIG is commonly selected for fine-pitch assembly and storage stability. Hard gold is generally used for repeated-contact edge or keypad areas, while OSP and immersion tin may be used for cost-sensitive soldering applications.	Fine-pitch components, board-to-board connectors, keypads, contact fingers and lead-free assembly lines.	Specify contact durability, soldering process, storage period and RoHS requirements when choosing the finish.
Stiffeners and Mechanical Reinforcement	FR-4 stiffener Polyimide stiffener Stainless-steel reinforcement Peelable stiffener	Stiffeners improve insertion strength, component support and dimensional stability at connectors or soldering areas without stiffening the entire flex circuit.	Zero-insertion-force connectors, board-to-board connectors, button assemblies and component mounting zones.	Mark stiffener material, thickness and exact outline on the fabrication drawing. Stiffeners should not extend into required dynamic-bend zones.
Bending Performance	Static bend Dynamic bend Fold-to-install	A commonly used design guide is a minimum static bend radius of about 6× the finished thickness and a larger dynamic bend radius, often around 10× or more, depending on construction and copper geometry.	Hinges, moving modules, camera mechanisms, wearable products and repeated-fold assemblies.	State the bend radius, bend angle, number of cycles, bending direction and whether components or vias are located near the bend area.
Trace and Space Capability	Standard routing Fine-pitch routing High-density routing	Approximately 0.10–0.20 mm trace and space is common for many production flex designs; smaller geometries may be available after design review and process qualification.	Fine-pitch sensors, display connections, camera modules, medical electronics and high-density rigid-flex products.	Request a design-for-manufacturing review for minimum line width, spacing, annular ring, coverlay registration and etching compensation.
Via and Interconnection Technology	Through-hole vias Blind vias Microvias Via-in-pad by review	Through-hole vias are generally the most economical. Blind vias and microvias can improve routing density but require tighter process control and may increase cost.	Multilayer flex, fine-pitch packages, compact modules and rigid-flex boards with limited routing space.	Confirm minimum finished hole size, via protection, reliability requirements and whether vias are allowed inside dynamic-bend areas.
Component Assembly	Bare-board fabrication SMT assembly Through-hole assembly Mixed assembly	Suppliers may offer component placement, soldering, inspection and functional testing in addition to bare flex-circuit fabrication, subject to assembly geometry and fixture requirements.	Ready-to-install cable assemblies, sensor modules, display circuits and compact electronic subassemblies.	Provide BOM, pick-and-place files, assembly drawings, approved component alternatives and packaging requirements for accurate quotations.
Electrical and Reliability Testing	100% continuity test Insulation test AOI Flying probe Flex-cycle testing	Electrical testing verifies opens and shorts. AOI checks visible manufacturing defects, while flex-cycle, thermal-cycle and insulation testing can be added for reliability-critical products.	Automotive, medical, industrial control, aerospace-support equipment and products exposed to repeated movement.	Define acceptance criteria, test voltage, test coverage, sample size and required test reports before mass production.
Quality and Compliance Documentation	IPC-based workmanship RoHS REACH ISO 9001 systems	IPC-6013 is a commonly referenced performance specification for flexible printed boards. RoHS and REACH documentation supports market-access and restricted-substance requirements.	Global OEM supply chains, regulated industries and products requiring traceable production records.	Verify the exact certificate scope, revision level, material declarations, lot traceability and change-control procedures rather than accepting generic claims.
Prototype and Production Service	Quick-turn prototypes Small-batch production Mass production Engineering samples	Prototype lead times are often approximately 5–15 working days, while production schedules commonly range from about 10–25 working days after design approval, depending on complexity and quantity.	New product development, design validation, pilot builds and recurring commercial production.	Lead time should be confirmed after Gerber review, material approval, tooling assessment, electrical testing and shipping arrangements.
Packaging and International Logistics	Moisture protection Vacuum packaging Lot labeling Export cartons	Flex PCBs are commonly separated with protective materials and packed to reduce moisture, contamination, scratching and deformation during international transport.	Air freight, express shipments, sea freight and distributor-managed inventory programs.	Specify packaging quantity, desiccant requirements, date-code labeling, carton limits, Incoterms and export documentation.

The specifications shown are typical industry ranges and commonly available customization categories in China-sourced flex PCB production. Actual capability, pricing, lead time and certification status vary by supplier, material stack-up, order volume and design complexity; all values should be confirmed during engineering review.

How Can Global Buyers Compare Costs, Lead Times, and Supplier Support?

The best China flex PCB is not always the lowest-priced option. Global buyers should compare landed cost, production stability, and technical support together. IPC’s World PCB Production Report valued global PCB production at approximately 89 billion dollars in 2023. That scale increases choice, but also increases supplier differences.

Request identical quotations from three qualified factories. Include layer count, copper thickness, bend radius, coverlay, stiffeners, surface finish, testing, packaging, and shipping terms. Ask for tooling and engineering charges separately. A quote that excludes fixture costs may look attractive. It may not stay attractive. My supplier comparisons have sometimes missed yield losses, especially on narrow-pitch flex circuits. That mistake is worth revisiting.

Lead time should be split into prototypes, first production, and repeat orders. Record actual calendar days, not optimistic promises. IPC’s late-2024 North American PCB data showed bookings stronger than shipments in several reporting periods, suggesting capacity pressure could affect schedules. Ask whether capacity is reserved after approval. Supplier support also needs evidence: DFM feedback, stack-up drawings, impedance reports, first-article inspection, and corrective-action records. IPC-6013 and IPC-A-600 provide useful acceptance references for flexible circuits. Still, standards do not replace communication. Test it early. Send a sample design and measure response speed, question quality, and documentation. A supplier that answers quickly but avoids specific manufacturing limits may create more risk than a slower, transparent partner.
