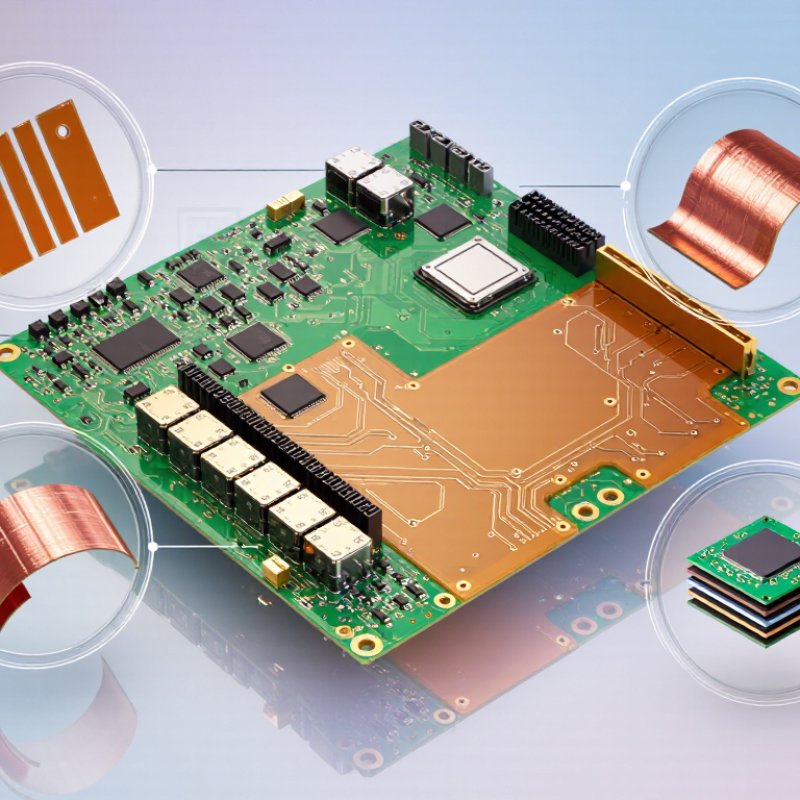

How to Choose the Best Rigid Flex PCB Manufacturer?
Choosing the best rigid flex pcb manufacturer requires more than comparing unit prices. The right partner must understand mechanical movement, electrical performance, material behavior, and production risk. A board may look excellent on a screen, yet fail after repeated bending, thermal cycling, or connector insertion. Small details matter. Coverlay alignment matters. Bend radius matters. So does copper thickness near a dynamic fold.
Joseph Fjelstad, a recognized flexible-electronics expert, captures this principle well: “A flexible circuit is not simply a rigid circuit made flexible.” His observation should guide every supplier evaluation. A capable manufacturer will question your stackup, bending profile, layer transitions, and assembly method. They will request drawings, operating temperatures, expected bend cycles, and impedance targets. They should also explain why a material or process is suitable, not merely claim that it is “high quality.”
Look for documented process controls, traceable materials, qualified operators, and reliable inspection equipment. Ask whether the factory performs controlled-impedance testing, microsection analysis, solderability testing, and flex-life validation. Review sample boards closely. Check the fold area under magnification. Uneven coverlay, exposed copper, or sharp transition points may signal deeper process weakness.
Price still matters. It should not lead the decision. A cheaper supplier can become expensive after redesigns, delays, and field failures. Still, no manufacturer is perfect. Even strong suppliers may misunderstand an unclear drawing or miss an unusual assembly constraint. That is why communication deserves careful testing. Share a demanding but realistic design. Study the questions they ask, the evidence they provide, and the problems they admit. The best choice is usually the manufacturer that makes risk visible before production begins.
Define Rigid-Flex Requirements with IPC-2223 Layer and Bend Criteria
Choosing the best rigid-flex PCB manufacturer starts with clear requirements. IPC-2223 provides a practical framework for defining flexible-layer construction and bend behavior. Specify the number of flex layers, copper thickness, dielectric materials, coverlay, and stiffener locations. These details affect flexibility, impedance, heat, and long-term reliability.
Separate static folds from dynamic movement. A cable bent once during assembly needs different criteria from a hinge flexing thousands of times. Define the minimum bend radius, bend direction, bend zone length, and expected cycle count. The manufacturer should calculate the radius from the finished flex thickness and layer stackup. Avoid placing vias, plated holes, or abrupt copper changes inside the bend area. Small details matter.
Ask for an IPC-2223-based drawing review before fabrication. A capable engineering team can show the neutral axis, copper distribution, transition geometry, and controlled-radius tooling. Request evidence from cross-sections, bend tests, and dimensional inspection. A sample may pass visually yet fail after repeated folding. That risk is easy to underestimate.
Be cautious with fixed bend-ratio rules. They are useful starting points, not universal answers. Material selection, copper grain, adhesive thickness, and operating temperature can change performance. In practice, a simple prototype bend test often exposes weak assumptions. It may also reveal that the original stackup is too thick. That is an uncomfortable, but valuable, correction.
Verify Manufacturer Capability Against IPC-6013, HDI, and Class 3 Standards
Choosing a rigid-flex PCB manufacturer requires more than comparing prices or reviewing attractive samples. Verify whether the supplier can build to IPC-6013 requirements for flexible and rigid-flex boards. Ask for qualification records, controlled process documents, and recent inspection data. Confirm material compatibility, bend performance, dielectric control, coverlay accuracy, and plated-through-hole reliability. A capable manufacturer should explain these controls clearly, not hide behind general certification.
For HDI designs, inspect the factory’s real process limits. Discuss laser-drilled microvias, sequential lamination, fine-line imaging, via stacking, and layer-to-layer registration. Request cross-sections from comparable builds. Check how the team measures copper thickness and detects voids. Class 3 products demand stronger evidence, including documented testing, traceability, and tighter acceptance criteria. Certificates alone are not enough. That assumption often causes expensive redesigns.
Tips: Ask for a pilot build before approving volume production. Review failure reports, not only successful samples. Confirm whether engineering, inspection, and production records remain traceable by lot. A supplier may claim HDI expertise but lack stable yield on rigid-flex structures. That gap matters. Do not ignore it. During a technical audit, compare written procedures with the operator’s actual work. Small differences can reveal weak process discipline. Also verify that the manufacturer understands your operating environment, bend cycles, thermal exposure, and Class 3 risk level. Vague answers deserve a second review.
Compare DFM Metrics: Trace Width, Via Density, and Impedance Tolerance
How to Choose the Best Rigid Flex PCB Manufacturer?
Compare DFM Metrics: Trace Width, Via Density, and Impedance Tolerance
A capable rigid-flex manufacturer should provide measurable DFM data, not vague capability claims. Compare minimum trace width at the actual copper thickness. A 3 mil trace in one stackup may not equal 3 mil performance in another. Ask for etching limits, spacing rules, and sample cross-sections. These details reveal process control.
Via density deserves equal attention. Count vias per square centimeter across rigid and flex regions. Dense rigid areas may tolerate conventional vias, while flex zones require careful placement. Vias near bend lines can create stress points. Check whether the manufacturer recommends staggered structures, larger pads, or exclusion zones. Small layout changes can improve flex life.
Impedance tolerance connects design intent with production reality. Request controlled-impedance test coupons and measured results from similar stackups. A stated ±10% tolerance may suit many interfaces, while tighter limits require stronger material and process control. Trace width, dielectric thickness, copper roughness, and resin flow all affect the final value. Do not compare percentages alone.
A spreadsheet can mislead.
I once overlooked bend-area constraints during an early review. The trace width looked acceptable, but the local copper balance was poor. That mistake changed the bend radius and forced a layout revision. Reliable suppliers explain these tradeoffs before fabrication. Their DFM feedback should include marked-up drawings, test evidence, and clear assumptions. When data is missing, treat the quoted capability as provisional.
Confirm Reliability Testing with UL 94V-0, Thermal Cycling, and IPC Classes
A reliable rigid-flex PCB manufacturer should prove reliability before quoting production volume.
Request test records, not polished claims. UL 94 V-0 evaluates vertical flame resistance. Each specimen must stop burning within 10 seconds, with no flaming drops igniting cotton. Ask whether the actual coverlay, adhesive, and stiffener materials were tested together. Substitution can change performance.
Thermal cycling should match the application. IPC-TM-650 2.6.7.1 commonly evaluates insulation resistance after repeated temperature exposure, while IEC 60068-2-14 defines practical temperature-change methods. A useful report lists cycle count, dwell time, ramp rate, humidity, and resistance measurements.
For demanding equipment, IPC Class 3 acceptance requires tighter workmanship and reliability evidence than Class 2. IPC’s 2024 Global Sentiment report identifies quality and supply continuity as persistent industry concerns, reinforcing the need for traceable test data.
Do not accept “passed” without limits.
I have found one weakness in many supplier reviews: thermal cycling often covers the laminate, but not the bend zone. Request dynamic-flex testing, bend radius, copper construction, and post-test cross-sections. Ask for failure analysis images. Real evidence is sometimes untidy. That is useful.
A manufacturer that shares one failed sample, its root cause, and the corrective action may be more credible than one showing only perfect results.
