How to Choose a Rigid Flex PCB Supplier in 2026?
Choosing a rigid flex pcb supplier in 2026 means checking more than price and delivery promises. IPC’s World PCB Production Report provides useful context on regional production and industry capacity, while IPC-6013 defines qualification and performance requirements for flexible and rigid-flex printed boards. These sources help frame the questions buyers should ask: Can the supplier control material selection, lamination, drilling, coverlay application, and inspection as one repeatable process? What evidence supports its claims—cross-sections, test results, and traceable build records?
The details matter at the bend. A copper layer that looks fine on a drawing may crack after repeated flexing if its geometry, material, or transition zone is poorly controlled. Veteran PCB technologist Happy Holden’s published design guidance emphasizes treating board design and manufacturing as connected disciplines. A useful sourcing principle follows: “Qualify the process, not just the drawing.” That is a practical summary, not a verbatim quotation. Ask suppliers to demonstrate how they manage bend radius, impedance, stack-up changes, and first-article validation. Look for documented engineering reviews, not polished sales slides. Proof beats promises. Even a capable supplier may struggle with an unfamiliar construction, so request a representative prototype before committing to volume. This guide examines the technical, quality, communication, and commercial checks that can help buyers choose a supplier with evidence behind its answers. One caveat remains: a strong audit cannot guarantee every production outcome. It can, however, reveal weak controls before they become costly surprises.
Define Your Rigid-Flex PCB Requirements
Before comparing suppliers, turn the product concept into measurable requirements. Mark every rigid area, bend zone, connector, and stiffener on the mechanical drawing. State whether each bend is static or dynamic; repeated motion changes the fatigue demands on copper. Give the minimum bend radius, expected bend cycles, board thickness, layer count, and allowable dimensions. Early requirements are rarely perfect. Flag estimates, too.
Define electrical and environmental limits, not just the outline. Specify controlled-impedance targets, operating temperature, vibration exposure, and any shielding or insulation needs. Identify materials and copper weights where known, and ask the supplier to review stack-up feasibility against IPC-2223 design guidance. Include acceptance criteria for continuity, insulation resistance, and cross-section inspection. IPC-6013 can help frame qualification requirements. Avoid vague phrases like “high reliability”; state the conditions and evidence you expect.
Market growth makes clear specifications more useful, not less. Grand View Research estimated the global printed circuit board market at USD 76.1 billion in 2024 and forecast a 5.7% compound annual growth rate from 2025 to 2030. This covers PCBs broadly, not rigid-flex alone. Share expected annual volume, prototype quantity, delivery window, and required documentation, such as stack-up drawings and test reports. Ask candidate suppliers to identify assumptions and unresolved risks in writing. A supplier’s early questions can reveal gaps in your brief. So can your own.
Assess Supplier Design and Manufacturing Capabilities
A rigid-flex supplier should prove that its design rules match your board’s actual geometry. Ask for documented minimum bend radius, copper selection, coverlay registration, impedance control, and layer-transition limits. Request a stackup review before layout release. For a hinge area, inspect how the supplier handles copper near the bend and whether the flex section avoids plated vias. Small details can cause field failures.
Grand View Research’s 2024 printed circuit board market analysis estimated the global market at USD 73.4 billion in 2023, with continued growth forecast through 2030. That expansion signals demand, not manufacturing competence.
Ask suppliers for capability evidence: cross-sections from comparable builds, impedance test results, thermal-cycle data, and yield records. IPC-6013 provides qualification and performance requirements for flexible and rigid-flex boards; confirm which class and acceptance criteria apply to your project. Then review a sample inspection report with the engineering team.
A polished presentation is not enough.
No checklist is perfect. I would also ask how process changes are recorded, since a good first article does not prove every later lot will match.
Verify Quality Systems, Certifications, and Compliance
A rigid-flex supplier’s certificate is a starting point, not a quality verdict. Ask for current certificates and confirm that the listed site and manufacturing scope match your project. A valid quality system should connect incoming material checks, process controls, inspections, and corrective actions. Paper is not proof.
For rigid-flex boards, request evidence tied to the actual build. This may include inspection records for coverlay registration, plated holes, bend areas, and impedance coupons. Ask how the supplier traces polyimide and copper lots through production. A capable team can explain its controls clearly, including what happens when a measurement falls outside limits. Look for documented change control, too. A quiet material substitution can affect bending performance.
Check relevant certifications and customer requirements rather than collecting logos. Depending on the end use, this may include an ISO 9001 system, an industry-specific quality system, or documented compliance with material restrictions in your target markets. Verify expiry dates and audit scope with the issuing body when possible. Then compare the paperwork with sample inspection reports and a factory audit. Audits can still miss things; people may prepare unusually well for visitors. That is worth considering. Ask how nonconforming boards are contained, reported, and prevented from recurring.
How to Choose a Rigid-Flex PCB Supplier in 2026: Verify Quality Systems, Certifications, and Compliance
Compare quality-management standards with your product’s target market. A relevant certification can support supplier qualification, but it does not by itself guarantee product quality or make certification mandatory.
Chart key: 1 = relevant quality-management framework; 0 = not a sector-specific match. ISO 9001 is a general quality-management standard. ISO 13485, IATF 16949, and AS9100 are associated with medical-device, automotive, and aviation/space/defense quality-management contexts, respectively. Confirm certificate validity, certified site, and scope with the issuing certification body.
Compare Pricing, Lead Times, and Supply Chain Resilience
A rigid-flex PCB quote is only useful when its assumptions are visible. Compare the same layer count, board dimensions, copper weights, stiffener locations, and test requirements across suppliers. Ask whether tooling, electrical testing, and packaging are included. A low unit price can shift costs into setup fees or later revisions. Check the quoted price at your expected order volume, not just for a sample run. Small differences add up.
Lead time needs the same scrutiny. Request separate estimates for engineering review, prototype fabrication, and production. Then ask what could extend each stage: material availability, design changes, or queue time. A supplier offering a short prototype window should explain how that timing changes at production scale. Get a dated schedule with approval milestones. It is less comforting than a quick promise, but more useful.
Supply chain resilience shows up in practical details. Ask whether critical laminates and coverlay materials have qualified alternatives, and how shortages are communicated. Review recent delivery performance and request an escalation contact. A second material source may help, though it can require fresh qualification and testing. No comparison is perfect; I would still verify the details against a real build. If possible, compare a pilot order with the promised schedule, inspection records, and packaging condition before committing larger volumes.
Evaluate Prototypes and Select a Long-Term Supplier

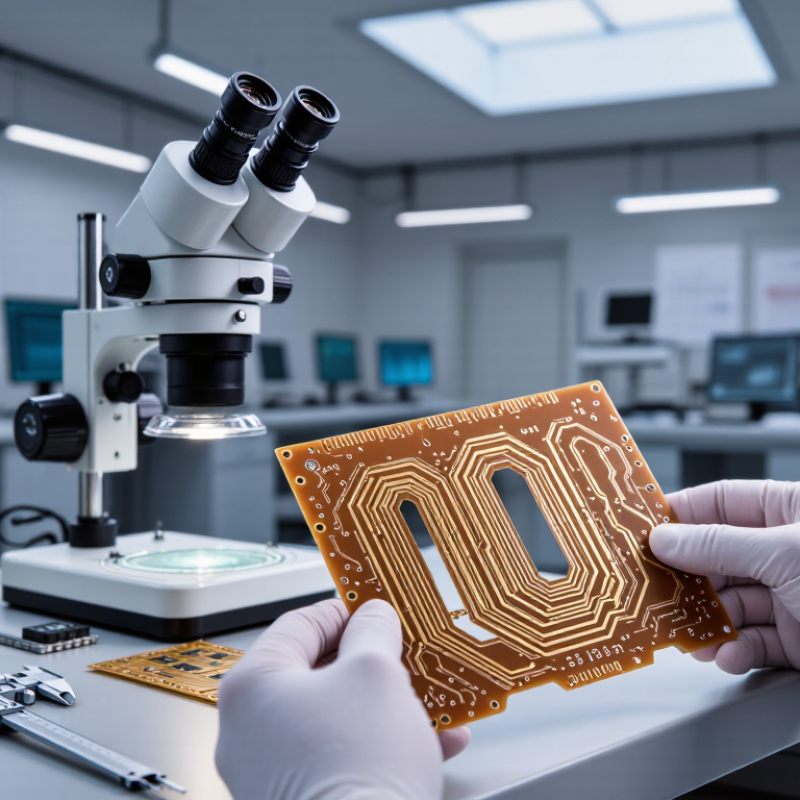

How to Choose a Rigid Flex PCB Supplier in 2026?
Evaluate prototypes as process evidence, not just attractive samples. Check layer registration, plated vias, coverlay alignment, and the rigid-to-flex transition under magnification. Ask for the approved stackup, material traceability, and test results tied to your drawing revision. IPC-6013 provides qualification and performance requirements for flexible printed boards; agree with the supplier on applicable requirements for your design. Test bend life and thermal cycling against real use conditions. A single successful build proves little.
Market reports show why supplier capacity deserves scrutiny, but their estimates differ. Grand View Research valued the flexible PCB market at about $17.2 billion in 2023 and forecast 10.3% annual growth through 2030. Fortune Business Insights estimated $19.59 billion for 2023 and projected $33.37 billion by 2032. Their scopes and methods vary. Treat these figures as context, not proof that any supplier can meet your needs.
For long-term selection, review corrective-action records, production yield trends, change-control practices, and plans for material substitutions. Request evidence from a repeat prototype, not only the first build. Ask how defects are isolated and reported, and verify that quoted lead times include tooling and inspection. I would not overvalue a polished sample; it can hide a fragile process. Capacity claims need evidence. A small pilot run can reveal whether communication, documentation, and workmanship stay consistent when orders repeat.
